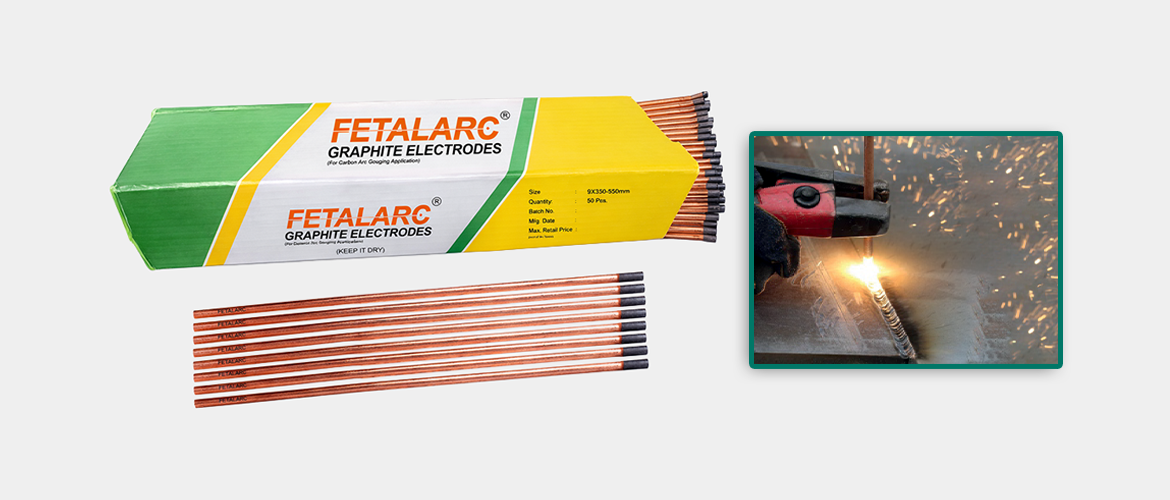

FETALARC® Brand Gouging Carbon Rods are Owned and Manufactured by SWITTZER TECHNOLOGIES INC Plant is located state of a at TIF MSME Industrial Park NH65 Vijayawada Highway, Near Hyderabad, Telangana State, INDIA.
Air Arc Carbon Gouging Rods are Copper Coated made from a mixture of Aificial Graphite and pure carbon materials. Carbon arc gouging is widely adopted because of its ease of use and efficiency. Specifically, carbon arc gouging. Typical applications can be found in every field of metal working Industries.
Carbon Gouging Rods are used for weld edge preparation back-gouging in multi pass welding, removing unsatisfactory welds, bolt and wire ends, spaer removal and all kinds of cutting.
The Air carbon arc process is flexible, efficient, and cost effective on practically any metal
Steel Foundries
Steel Constructions
Ship Building
Weld Repair & Maintenance
Heavy Fabrication
Cuing of Risers & Runners in Steel Foundries
Removing of defective welds
Cuing Ferrous & Non Ferrous and - Other hard cut metals
Rough Cuing / Machining
Machining of U-Grooves for weld joint preparations
Cleaning & Repairing of Metal Castings
Excellent ARC Stability
Uniform Diameter
Superior in Metal Removing Rate
Over All Greater in Economy
Clean Groves / Cuts
D.C. Power Source
FETALARC® – Gouging Carbon Electrode
Gouging Torch
Compressed Air Capacity of 5.5 - 7kg/cm
| Technical Advice | ||||||
|---|---|---|---|---|---|---|
| Size of Electrode (mm) | 6 | 8 | 9 | 10 | 12 | 16 |
| Minimum - Amps | 250 | 350 | 450 | 550 | 600 | 900 |
| Maximum-Amps | 350 | 450 | 600 | 700 | 900 | 1200 |
| Air - Psi | 80 | 80 | 80 | 80 | 100 | 100 |
| Air-kg/cm2 | 5.6 | 5.6 | 5.6 | 5.6 | 7.0 | 7.0 |
| Metal Removed Rate Per Electrode | |||||
|---|---|---|---|---|---|
| Electrode (mm) | 6 | 8 | 10 | 12 | 16 |
| GMS / Electrode | 360 | 650 | 950 | 1450 | 2150 |
| * The Standard length of Electrode 330mm | |||||
